# Statistical approaches to epidemic forecasting

## <svg aria-hidden="true" role="img" viewBox="0 0 640 512" style="height:1em;width:1.25em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#ffa319;overflow:visible;position:relative;"><path d="M392.8 1.2c-17-4.9-34.7 5-39.6 22l-128 448c-4.9 17 5 34.7 22 39.6s34.7-5 39.6-22l128-448c4.9-17-5-34.7-22-39.6zm80.6 120.1c-12.5 12.5-12.5 32.8 0 45.3L562.7 256l-89.4 89.4c-12.5 12.5-12.5 32.8 0 45.3s32.8 12.5 45.3 0l112-112c12.5-12.5 12.5-32.8 0-45.3l-112-112c-12.5-12.5-32.8-12.5-45.3 0zm-306.7 0c-12.5-12.5-32.8-12.5-45.3 0l-112 112c-12.5 12.5-12.5 32.8 0 45.3l112 112c12.5 12.5 32.8 12.5 45.3 0s12.5-32.8 0-45.3L77.3 256l89.4-89.4c12.5-12.5 12.5-32.8 0-45.3z"/></svg> Evaluation and software

<br>

.pull-left[
###Daniel J. McDonald
###University of British Columbia
#### &nbsp;10 February 2023
]

.pull-right.center[
![:scale 30%](gfx/qrcodes-1.png)
<br>
]
---

## Mathematical modelling of disease / epidemics is very old

* .tertiary[Daniel Bernoulli (1760)] - studies inoculation against smallpox

* .tertiary[John Snow (1855)] - cholera epidemic in London tied to a water pump

* .tertiary[Ronald Ross (1902)] - Nobel Prize in Medicine for work on malaria

* .tertiary[Kermack and McKendrick (1927-1933)] - basic epidemic (mathematical) model

.center[
![:scale 50%](https://www-tc.pbs.org/wgbh/masterpiece/wp-content/uploads/2019/02/victoria-s3-e4-historical-01-3200x1800.jpg)
]

---

## Forecasting is also old, but not that old

### US CDC Flu Challenge began in 2013

.center[
![:scale 60%](https://www.cdc.gov/flu/images/weekly/flu-forecasting.jpg?_=29012)
]

> CDC’s Influenza Division has collaborated each flu season with .tertiary[external researchers] on flu forecasting. <br>CDC has provided forecasting teams data, relevant public health forecasting targets, and forecast accuracy metrics while .tertiary[teams submit their forecasts], which are based on a variety of methods and data sources, each week.

---

## The Covid-19 Pandemic

* CDC pivoted their Flu Challenge to Covid-19 in June 2020

* Similar efforts in Germany and then Europe

.pull-left[
![](https://covid19forecasthub.org/images/forecast-hub-logo_DARKBLUE.png)
]

.pull-right[
![:scale 50%](https://covid19forecasthub.eu/images/logo.svg)
]

* .secondary[Nothing similar for Canada]

* CDC now has Flu and Covid simultaneously

---

## Why the Forecast Hubs?

* Collect public forecasts in a standard format and visualize

* Used internally by CDC

* Turns out, most individual teams' forecasts are ... not great

* Combine submissions into an "Ensemble"

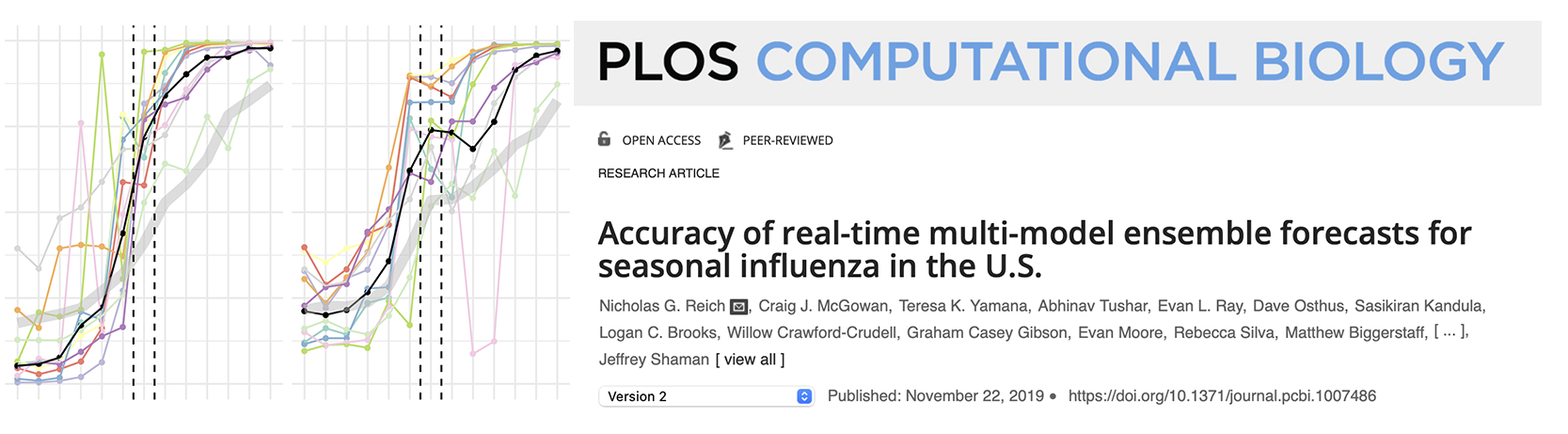

![https://doi.org/10.1371/journal.pcbi.1007486](gfx/pnas.png)

---

# Outline

.large[
.tertiary[0.] .grey[History and background]

.tertiary[1.] Standard forecasting models.

.tertiary[2.] Forecast evaluation

.tertiary[3.] Gaps in forecasting

.tertiary[4.] Some lessons learned

.tertiary[5.] Software for the community
]

---
class: inverse, middle, center

# Standard forecasting models

---

---

## Quick overview of types

.pull-left[
* BPagano - SIR

* CMU - Time Series

* Colorado (4 versions) - SEIR, different scenarios

* Georgia Tech - Deep learning...

* IHME (rarely) - SEIR

* Johns Hopkins (3 in Applied Physics) - SEIR, Time series, ensemble

* Johns Hopkins (other, Infection Dynamics) - SEIR
]

.pull-right[
* Dean Karlen (Physicist at UVic) - SEIR type

* MOBS-Gleam - Agent based mobility model

* USC - SEIR

* UVA - Ensemble of VAR, LSTM, SEIR

* Prolix - "Offsets obtained by correlations, best linear approximation of reproduction rates (using vaccination  approximation) by least euclidean distance, and linear prediction."
]

.large.fourth-color[SIR-type]

.large.tertiary[Time series]

.secondary.large[Ensemble / Deep Learning / ML]

---

## Time series (simplification)

> On day `$t$`, model hospitalizations at day `$t+a$` as a function of today's hospitalizations and those in the recent past.

.secondary[For example:]

`$$\widehat{y}_{t+a} = a_{0} y_{t} + a_{7}y_{t-7} + a_{14} y_{t-14} + b_0 x_t + b_{7} x_{t-7}$$`

.secondary[COVIDhub Baseline:]

`$$\widehat{y}_{t+a} = y_{t}$$`

* Seemingly, straightforward to do.
* Performs surprisingly well, most of the time.
* Not so good when you'd most want it to work.
* Uses essentially no information about epidemics.

---

## SIR-type (compartmental) models - Stochastic Version

.pull-left-wide[
Suppose each of N people in a bucket at time t:

1. .large[.primary[Susceptible(t)]] : not sick, but could get sick
1. .large[.secondary[Infected(t)]] : sick, can make others sick
1. .large[.tertiary[Removed(t)]] : either recovered or dead; not sick, can't get sick, can't make anyone sick

<hr>

**Assume**: During period h, each .primary[S] meets kh people.

**Assume**: Prob( .primary[S] meets .secondary[I] and becomes .secondary[I] ) = c.

.fourth-color[So]: Prob( .primary[S] `$\rightarrow$` .secondary[I] ) = `$1 - (1 - c I(t)  / N )^{hk} \approx kchI(t) / N$`

.fourth-color[So]: New .secondary[I] in time h `$\sim Binom(S(t),\ kchI(t) / N)$`

**Assume**: Prob( .secondary[I] `$\rightarrow$` .tertiary[R]) = `$\gamma h$`

.fourth-color[So]: new removals in time h `$\sim Binom(I(t),\ \gamma h)$`
]

.pull-right-narrow[

<div id="htmlwidget-a67048a132096100379e" style="width:100%;height:144px;" class="widgetframe html-widget "></div>
<script type="application/json" data-for="htmlwidget-a67048a132096100379e">{"x":{"url":"gfx//widgets/widget_sir-dag.html","options":{"xdomain":"*","allowfullscreen":false,"lazyload":false}},"evals":[],"jsHooks":[]}</script>

]

---

## SIR-type (compartmental) models - Stochastic Version

.pull-left-wide[

### Over-all equations:

`\begin{aligned}
C(t+h) & =  \mathrm{Binom}\left(S(t),\ \frac{\beta}{N} h I(t)\right)\\
D(t+h) & =  \mathrm{Binom}\left(I(t),\ \gamma h\right)\\
S(t+h) & =  S(t) - C(t+h)\\
I(t+h) & =  I(t) + C(t+h) - D(t+h)\\
R(t+h) & =  R(t) + D(t+h)
\end{aligned}`

### In the deterministic limit, `$N\rightarrow\infty,\ h\rightarrow 0$`

`\begin{aligned}
N &= S(0) + I(0) + R(0)\\
\frac{dS}{dt} & =  -\frac{\beta}{N} S(t)I(t)\\
\frac{dI}{dt} & =  \frac{\beta}{N} I(t)S(t) - \gamma I(t)\\
\frac{dR}{dt} & =  \gamma I(t)
\end{aligned}`

**"_the_ SIR model"** is often ambiguous between these

]

.pull-right-narrow[
<div id="htmlwidget-2879c477db026b293f56" style="width:100%;height:252px;" class="widgetframe html-widget "></div>
<script type="application/json" data-for="htmlwidget-2879c477db026b293f56">{"x":{"url":"gfx//widgets/widget_sir-dag-again.html","options":{"xdomain":"*","allowfullscreen":false,"lazyload":false}},"evals":[],"jsHooks":[]}</script>

]

---

## Data issues

- .tertiary[Ideally] we'd see .large[.primary[S], .secondary[I], .tertiary[R]] at all times

- Easier to observe new infections, .large[.secondary[I(t+h) - I(t)]]

- Removals by death are easier to observe than removals by recovery,
  so we mostly see .large[.tertiary[(R(t+h) - R(t))] &times; (death rate)]

- The interval between measurements, say `$\Delta$`, is often `$\gg h$`

- Measuring .large[.secondary[I(t)]] and .large[.tertiary[R(t)]] (or their rates of change) is hard
    + testing/reporting is sporadic and error prone
    + Need to model test error (false positives, false negatives) _and_ who gets tested
    + Need to model lag between testing and reporting

- Parameters (especially, `$\beta$`) change during the epidemic
    + Changing behavior, changing policy, environmental factors, vaccines, variants, ...

---

## Connecting to Data

- Likelihood calculations are straightforward if we can measure .large[.secondary[I(t)], .tertiary[R(t)]] at all times 0, h, 2h, &hellip; T

- Or .large[.secondary[I(0)]], .large[.tertiary[R(0)]] and all the increments .large[.secondary[I(t+h) - I(t)], .tertiary[R(t+h) - R(t)]]

- Still have to optimize numerically

- Likelihood calculations already become difficult if the time between observations `$\Delta \gg h$`
    + Generally, `$\Delta \approx$` 1 day
    + In principle, this just defines another Markov process, with a longer interval `$\Delta$` between steps, but to get the likelihood of a `$\Delta$` step we have to sum over all possible paths of `$h$` steps adding up to it

- Other complications if we don't observe all the compartments, and/or have a lot of noise in our observations
    + We don't and we do.

---

## Connecting to Data

.pull-left[

- Often more tractable to avoid likelihood  (Conditional least squares, simulation-based inference)

- Intrinsic issue: Initially, everything just looks exponential
    + So it's hard to discriminate between distinct models
    + So even assuming an SIR model, it's easier to estimate `$\beta - \gamma$` than `$(\beta, \gamma)$` or `$\beta/\gamma$`

- Can sometimes **calibrate** or fix the parameters based on other sources
    + E.g., `$1/\gamma =$` average time someone is infectious, which could be determined from clinical studies / observations
]

.pull-right[
<blockquote class="twitter-tweet"><p lang="en" dir="ltr">I have been thinking about how different people interpret data differently. And made this xkcd style graphic to illustrate this. <a href="https://t.co/a8LvlmZxT7">pic.twitter.com/a8LvlmZxT7</a></p>&mdash; Jens von Bergmann (@vb_jens) <a href="https://twitter.com/vb_jens/status/1372251931444350976?ref_src=twsrc%5Etfw">March 17, 2021</a></blockquote>
]

---

## These models fit well "in sample"

.pull-left[
* Track observed cases closely (they should)

* Can provide nuanced policy advice on some topics

* Many questions depend on modulating `$\beta$`
    1. What happens if we lock down?
    2. What happens if we mask?
    3. What happens if we have school online?
    4. Vaccine passport?

* Vaccination modeling is easier, directly removes susceptibles

* What about out-of-sample?
]

.pull-right[.center[
<svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:20em;width:20em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:orange;overflow:visible;position:relative;"><path d="M256 512c141.4 0 256-114.6 256-256S397.4 0 256 0S0 114.6 0 256S114.6 512 256 512zm0-384c13.3 0 24 10.7 24 24V264c0 13.3-10.7 24-24 24s-24-10.7-24-24V152c0-13.3 10.7-24 24-24zm32 224c0 17.7-14.3 32-32 32s-32-14.3-32-32s14.3-32 32-32s32 14.3 32 32z"/></svg>
]]

---

## What does this "look like"?

```r
sim_SIR <- function(TT, N = 1000, beta = .1, gamma = .01) {
  S <- double(TT); I <- double(TT); R <- double(TT)
  S[1] <- N - 1; I[1] <- 1; R[1] <- 0
  for (tt in 2:TT) {
    contagions <- rbinom(1, size = S[tt - 1], prob = beta * I[tt - 1] / N)
    removals <- rbinom(1, size = I[tt - 1], prob = gamma)
    S[tt] <- S[tt - 1] - contagions
    I[tt] <- I[tt - 1] + contagions - removals
    R[tt] <- R[tt - 1] + removals
  }
  tibble(S = S, I = I, R = R, time = 1:TT)
}
```

---

## What does this "look like"?

---
class: inverse, middle, center

# So how do they do? <br><br> Out-of-sample COVID Forecasting

---

## The forecast format

* Various targets .secondary[incident deaths], .tertiary[incident cases], .fourth-color[hospital admissions]

* Produce point forecasts

* Quantiles to measure uncertainty (set of 23)

* Predict 1&ndash;4 epiweeks or 1&ndash;28 days ahead

---

## Forecast evaluation

[Weighted Interval Score (Bracher et al., 2000)](https://arxiv.org/abs/2005.12881)

`$$WIS = \frac{2}{K} \sum_{k=1}^K \max\{\tau_k (y - q_k),\ (1-\tau_k)(q_k - y)\}$$`

.pull-left[
* Calculated for each target
(forecast date, location, horizon)

* For each Interval:
    1. Width of interval.
    1. Under prediction (AE to the top)
    1. Over prediction (AE to the bottom)

* Weighted average using probability content

* Mathematically equivalent to an average of quantile losses

* Discrete approximation of CRPS
]

.pull-right[

]

---

## Comparing across space and time

.pull-left[

* Error proportional to cases

* Large right skew

* "Adjust" by scaling to a Baseline

* Baseline is flat line + residual quantiles

]

.pull-right[

]

---

## Performance over time (Incident Deaths)

---

## Overall performance (Incident Deaths)

---

## What about Incident Cases?

---

## What about Hospital Admissions?

---
class: middle, center, h2

.large[Live evaluation dashboard]

<https://delphi.cmu.edu/forecast-eval/>

---
class: middle, center, inverse

# Gaps in forecasting

---

## Predicting surges in Florida

---

## PI Coverage

---

## The terrible case of Ohio

---

## The terrible case of Ohio

---
class: inverse, middle, center

# Forecasting lessons

---

## Forecasting lessons

Human in the loop

---

## Forecasting lessons

Human in the loop

---

## Forecasting lessons

Simple models [M, Bien, Green, Hu, ..., Tibshirani](http://medrxiv.org/content/10.1101/2021.06.22.21259346v1)

---
class: inverse, middle, center

# Software: signal processing and simple models

---

## `{epiprocess}`

.secondary[<https://cmu-delphi.github.io/epiprocess/>]

1. Data types

* `epi_df` &mdash; basically a `data.frame` but with important meta information
        1. `as_of` tag to denote the data vintage
        2. time type
        3. geo type
        4. additional keys (e.g., age, gender, race)
    * `epi_archive` &mdash; a collection of `epi_df`s of different vintages
        * But stored so as to eliminate redundancies
        * Allows for important operations (filling, merging, snapshots,  )

2. Fundamental functionality &mdash; the `slide()`

* Rolling correlations

    * Moving averages

    * outlier correction

    * arbitrary functions

---

## Example of `slide()`

```r
x <- x %>%  # covid cases in 2 locations downloaded with `{epidatr}`
  group_by(geo_value) %>%
  mutate(smooth_spline = growth_rate(time_value, cases, method = "smooth_spline"),
         trend_filter = growth_rate(time_value, cases, method = "trend_filter"))
```

---
## Example of `slide()`

---

## Outlier detection

```r
x <- x %>% mutate(outliers = detect_outlr_rm(time_value, cases))
# uses rolling median, but lots of fancy alternative options
```

---

## Examining an `epi_archive`

* Easy to inspect revision behaviour

* Can use it for pseudo-prospective forecasts

---
class: middle, center, inverse

# `{epipredict}`

<https://cmu-delphi.github.io/epipredict>

---

### .tertiary[A set of basic, easy-to-use forecasters that work out of the box.]

You can do a limited amount of customization. We currently provide:

- Baseline flat-line forecaster

- Autoregressive forecaster (not an "AR" model, you don't want this)

- Autoregressive classifier

### .tertiary[A framework for creating custom forecasters out of modular components.]

1. .secondary[Preprocessor]: do things to the data before model training

2. .secondary[Trainer]: train a model on data, resulting in a fitted model object

3. .secondary[Predictor]: make predictions, using a fitted model object

4. .secondary[Postprocessor]: do things to the predictions before returning

.tertiary[A very specialized plug-in to `{tidymodels}`]

---

## Basic autoregressive forecaster

* Predict `deaths` 1-week ahead on 0, 7, 14 day lags of cases and deaths.
* Use `lm`, produce intervals with residual quantiles.

```r
library(epipredict)
jhu <- case_death_rate_subset %>% filter(time_value > max(time_value) - 60)
canned <- arx_forecaster(jhu, outcome = "death_rate",
                         predictors = c("case_rate", "death_rate"))
canned$predictions
```

```
## An `epi_df` object, 56 x 6 with metadata:
## * geo_type  = state
## * time_type = day
## * as_of     = 2022-05-31 12:08:25
##
## # A tibble: 56 × 6
##    geo_value time_value  .pred         .pred_distn forecast_date target_date
##  * <chr>     <date>      <dbl>              <dist> <date>        <date>
##  1 ak        2021-12-31 0.397  [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
##  2 al        2021-12-31 0.262  [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
##  3 ar        2021-12-31 0.410  [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
##  4 as        2021-12-31 0.0983 [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
##  5 az        2021-12-31 0.610  [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
##  6 ca        2021-12-31 0.283  [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
##  7 co        2021-12-31 0.500  [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
##  8 ct        2021-12-31 0.518  [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
##  9 dc        2021-12-31 0.797  [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
## 10 de        2021-12-31 0.605  [0.05, 0.95]<q-rng> 2021-12-31    2022-01-07
## # … with 46 more rows
```

---

### Use random forests instead

```r
rf <- arx_forecaster(
  jhu, outcome = "death_rate", predictors = c("case_rate", "death_rate"),
  trainer = parsnip::rand_forest(mode = "regression"), # use ranger
  args_list = arx_args_list(
    ahead = 14,
    lags = list(c(0:4, 7, 14), c(0, 7, 14)),
    levels = c(0.05, 1:9/10, 0.95),
    quantile_by_key = "geo_value"
  )
)
```

### Or boosting

```r
xgb <- arx_forecaster(
  jhu, outcome = "death_rate", predictors = c("case_rate", "death_rate"),
  trainer = parsnip::boost_tree(mode = "regression", trees = 20), # use xgboost
  args_list = arx_args_list(
    ahead = 14,
    lags = list(c(0:4, 7, 14), c(0, 7, 14)),
    levels = c(0.05, 1:9/10, 0.95),
    quantile_by_key = "geo_value"
  )
)
```

---

## Code a forecaster by hand

```r
# A preprocessing recipe describing how to turn raw data into features / response
r <- epi_recipe(jhu) %>%
  step_epi_lag(case_rate, lag = c(0, 1, 2, 3, 7, 14)) %>%
  step_epi_lag(death_rate, lag = c(0, 7, 14)) %>%
  step_epi_ahead(death_rate, ahead = 14) %>%
  step_epi_naomit()

# A postprocessing routine describing what to do to the predictions
f <- frosting() %>%
  layer_predict() %>%
  layer_threshold(starts_with(".pred"), lower = 0) %>%
  # predictions/intervals should be non-negative
  layer_add_target_date(target_date = max(jhu$time_value) + 14)

# Bundle up the preprocessor, training engine, and postprocessor
ewf <- epi_workflow(r, quantile_reg(tau = c(.1, .5, .9)), f)

# Fit it to some data (we could fit this to ANY data that has the same format)
trained_ewf <- ewf %>% fit(jhu)

# examines the recipe to determine what we need to make the prediction
latest <- get_test_data(r, jhu)
preds <- trained_ewf %>% predict(new_data = latest)
```

---

## Examine the model

```r
extract_fit_engine(trained_ewf)
```

```
## Call:
## quantreg::rq(formula = ..y ~ ., tau = ~c(0.1, 0.5, 0.9), data = data,
##     na.action = function (object, ...)
##     UseMethod("na.omit"), method = "br", model = FALSE)
##
## Coefficients:
##                        tau= 0.1      tau= 0.5      tau= 0.9
## (Intercept)       -8.982762e-03 -0.0006293589 -0.0003799987
## lag_0_case_rate    2.062774e-03  0.0022135082  0.0010485960
## lag_1_case_rate   -9.368519e-05 -0.0002539653  0.0005056500
## lag_2_case_rate    3.388688e-04  0.0001240708  0.0017839004
## lag_3_case_rate    3.455396e-04  0.0001238113  0.0002803659
## lag_7_case_rate   -4.971177e-04  0.0004952626  0.0002953601
## lag_14_case_rate   2.430204e-03  0.0040881872  0.0037889962
## lag_0_death_rate   2.620076e-02  0.1620189335  0.2056693415
## lag_7_death_rate   3.524037e-02  0.1224601311  0.4249898859
## lag_14_death_rate  4.888930e-02  0.1396515777  0.4339184700
##
## Degrees of freedom: 1792 total; 1782 residual
```

---

## Plot the forecasts at some locations

---
class: middle, inverse, center

# Thoughts and thanks

---

## Some concluding thoughts

.pull-left[

* **Data is trouble**
    1. We've spent lots of time trying to make data available
    2. Even when Public Health doesn't cooperate
    3. Nowcasting
    4. Low SNR
    5. Very nonstationary

* **Forecast evaluation is not settled**
    1. Not optimized to predict turning points.
    2. How do we create ensembles?
    3. Better to predict squishy concepts: "surge", "upswing", "big upswing"?

]

.pull-right[

* **Hugely important to backtest properly**
    1. Data is constantly revised
    2. We see up to 10% "improvement" if we use finalized data

* **Understanding the spatio-temporal dynamics is open**
    1. How do "waves" propagate?
    2. How important is mixing?
    3. Seasonality?
    4. Effects of NPIs?

* **True Counterfactual causal inference is open**

* **We have a massive survey dataset**

]

<hr>

.tertiary.center.large[We're building software so others can use it.]

---

## Many thanks

* Ryan, Logan, Addison, Rob, Larry, Valerie, Alden, and the rest of [Delphi](https://delphi.cmu.edu/)

* Jens, Dean, Dan, Sally and [BC COVID Modelling group](https://bccovid-19group.ca)

* Funding to me from NSERC, CANSSI

* I get to benefit from the results of funding from Google, Facebook, Amazon, Change Healthcare, Quidel, SafeGraph, Qualtrics, CDC, CSTE

* Forecast evaluation from [Reich Lab](http://covid19forecasthub.org) and [Delphi](https://delphi.cmu.edu/forecast-eval/)

<hr>

.center[

.tertiary.large[Questions?]

On these or other issues.
]
